Description Of Metal Numeric Keypad
Waterproof stainless steel keyboard, number key and two function keys, compact layout of keys, using 0.5mm long key stroke, the installation method is from inside to outside, the whole thickness is: 13.5mm (excluding the control board), using full waterproof silica gel design, stainless steel panel and laser engraved key design, the mold with precision and accuracy, beautiful and generous surface treatment.
20 key oil dispenser keyboard industrial stainless steel number button, 1 * 11 pin
Prod uct Name:Fuel dispenser metal keyboard
Product P/N:GZ-B020020
| Product Size: | 120*146mm |
| KEYS | 20 |
| Line length | 2m or 15cm |

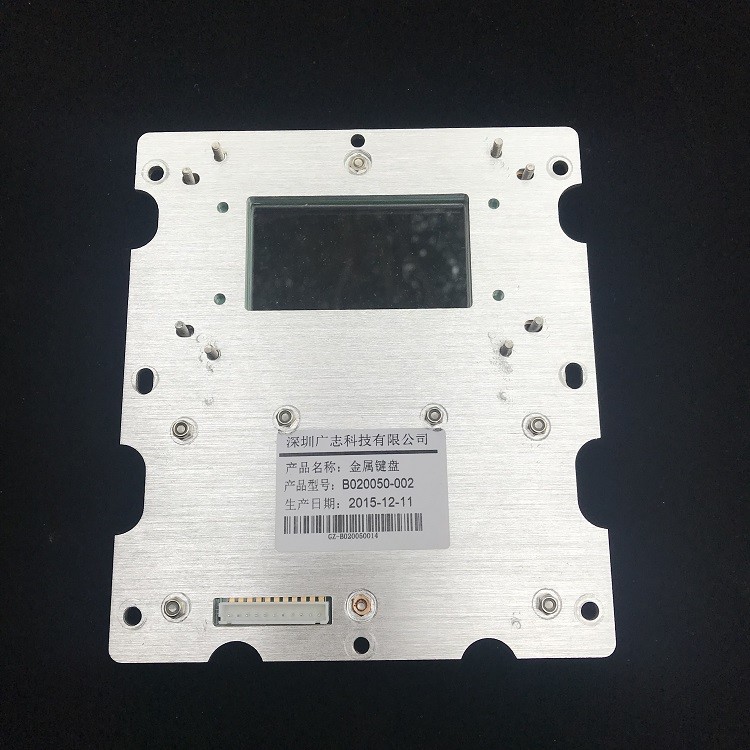

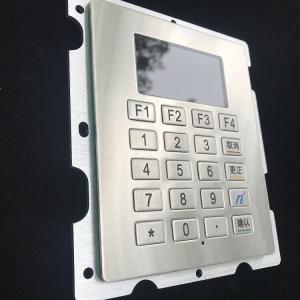

GZ-B020 keyboard is a special keyboard on the fuel dispenser. It is made of stainless steel and consists of 20 keys. The keys are arranged in a compact layout. The key stroke is 0.45mm long. The installation method is from inside to outside. The whole thickness is 34mm (including the height of the bottom box).
Main features:
Panel: stainless steel keyboard material is high-quality snowflake 304 stainless steel plate. There is no obvious dent, scratch, crack, deformation and pollution on the product surface. The surface coating is uniform without blistering, crazing, falling off and wear. Metal parts shall be free of rust and other mechanical damage. The parts of the product are tight without looseness, and the keyboard keys are comfortable and reliable to use.
Hardware interface 1*11p connecting line
The keyboard can be equipped with a screen, and the connecting cable is USB interface;
Electrical parameters:
1. Working voltage: DC + 5V + / - 5%
2. Working current: 20mA
3. Expected service life: > 5 years
4. Key switch technology: imported gold-plated pot chips
5. Interface technology: 11pin OR us
